American process ribbon blender

Description

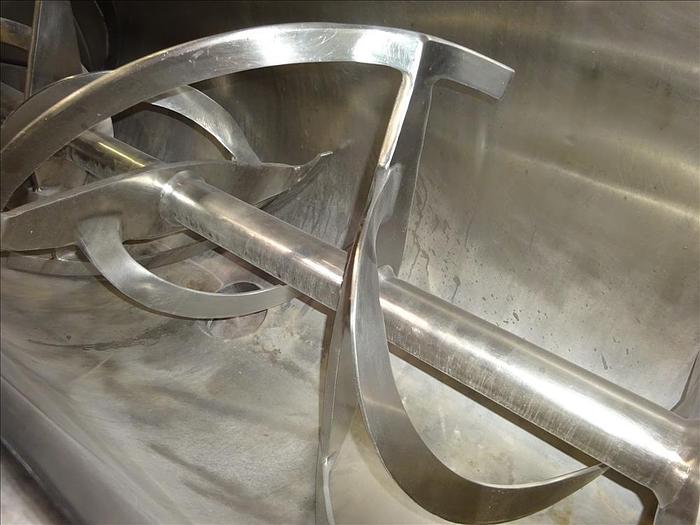

Used- American Process Double Spiral Ribbon Blender, Model DRB-24H, 24 Cubic Feet Working Capacity, 304 Stainless Steel. Non-jacketed trough 26″ wide x 66″ long x 30″ deep. Approximate 3″ diameter shaft, inner ribbon 2″ wide x 3/16″ thick, outer 1-1/2″ wide x 3/8″ thick, welded to 5/8″ thick posts. 6″ Diameter center bottom outlet with pneumatic valve. Two piece top cover. Openings top: 12″, (2) 6″. Mixer driven by a 10 hp, 3/60/230/460 volt, 1740 rpm motor thru reducer 37.37 to 1 ratio. Outboard roller bearings. Includes Shick tube-veyor feeding system consisting of (1) hopper approximate 54″ diameter x 12″ straight side x 44″ cone, side lug mounted, (1) hopper approximate 48″ diameter x 30″ straight side x 40″ cone, mounted on (3) legs, (2) shick feeders driven by 3/4 hp motors, (1) dust collector. Serial# 3643B, built 1992.

Specifications

ConditionUsed
