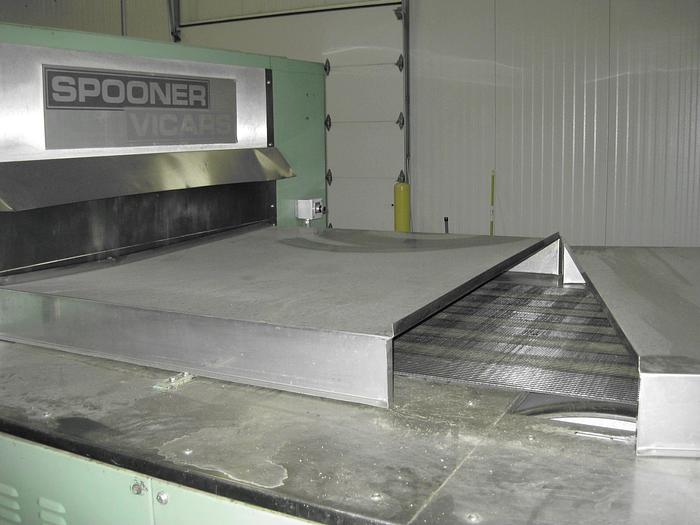

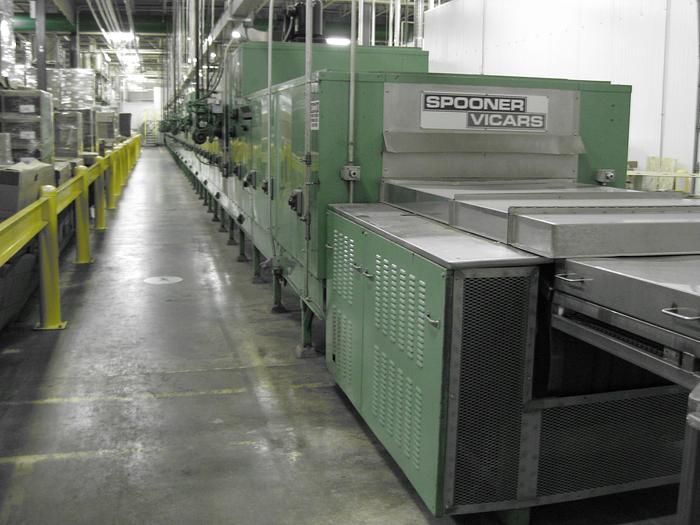

Sponner 1.2 Meter Oven

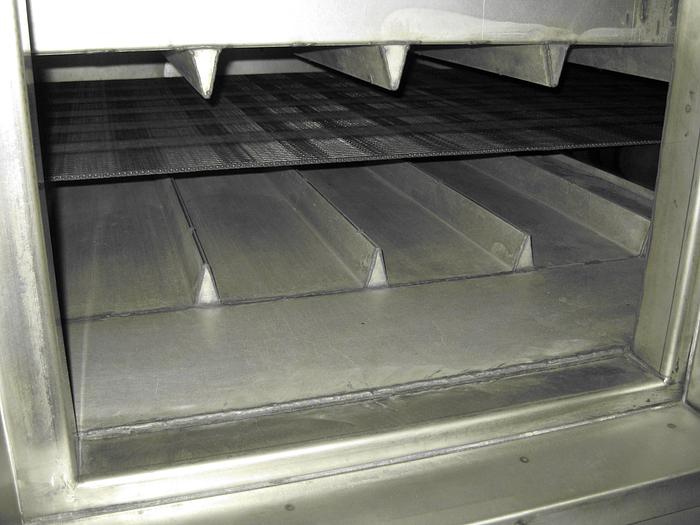

SPOONER 1.2 METER X 212 ‘ L 5 ZONE IMPINGEMENT OVEN, ZONE 1 & 2 – 2 MM BTU, ZONE 3, 4, & 5 -1.5 MM BTU ECLIPSE BURNERS, AIR VELOCITY 40 METERS PER MIN, HAS A CB 3, 1 METER WIRE MESH BELT CURRENTLY INSTALLED IN OVEN OVEN WAS ORIGINALLY DESIGNED FOR A 1.2 METER SOLID BAND TERMINAL ENDS ARE 47 "WIDE CAN BE EXPANDED TO 50 -52 " WIDE TO ACCEPT A 1.2 METER WIRE MESH, WILL ACCEPT A 1.2 METER SOLID BAND AS IS, AIR PLENUM IS 47 " WIDE ABOVE AND BELOW THE BAND, COMPLETE WITH GAS TRAIN, ALL FANS, TOP GUIDE ROLLERS 60 " W ON 46 " SPACING, BOTTOM ROLLERS 60 " W ON 9 ‘ CENTERS, GEAR BOX 85.65 :1 RATIO, OVEN DIM :OAL: 8 ‘ W X 107 " H 96 " W X 219 ‘ L, CONTROL PANEL DIM: 7 ‘ H X 10 ‘ W 16 " D DISMANTLING : OVEN WILL BE MATCHGED MARKED INTO 5 ZONES AND SPLIT INTO 5 – 40 ‘ SECTIONS, WIRE MESH ROLLED INTO APX. 4 – 50 ‘ SECTIONS, ALL WIRES MATCHED MARKED PULLED BACK TO OVEN CONDUIT TRAY INCLUDED, BLOWER AND EXHAUST FANS MATCHED MARKED AND SKIDDED ALL GAS BURNERS MATCHED MARKED AND SKIDDED, GAS TRAIN WILL BE DISMANTLED TO INCLUDED REGULATORS VALVES AND PIPE, ALL INSULATION BAGGED AND SAVED WHERE SPILT AT JOINTS, COMPLETE VERY CLEAN OVEN LOADED BUYERS TRUCK
