Votator Heat Exchangers

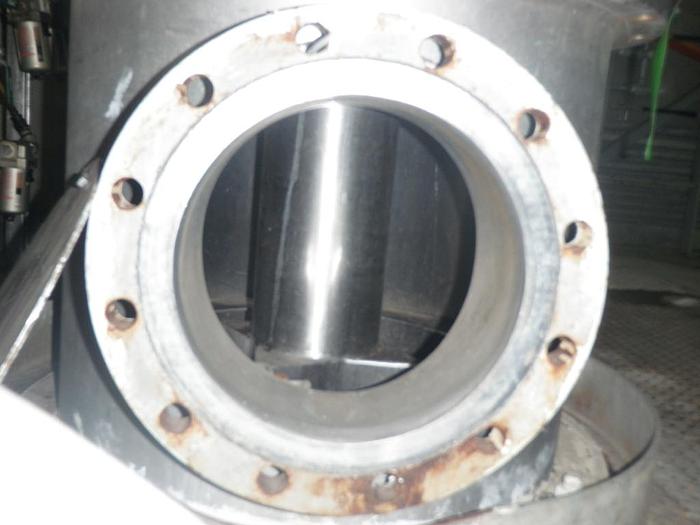

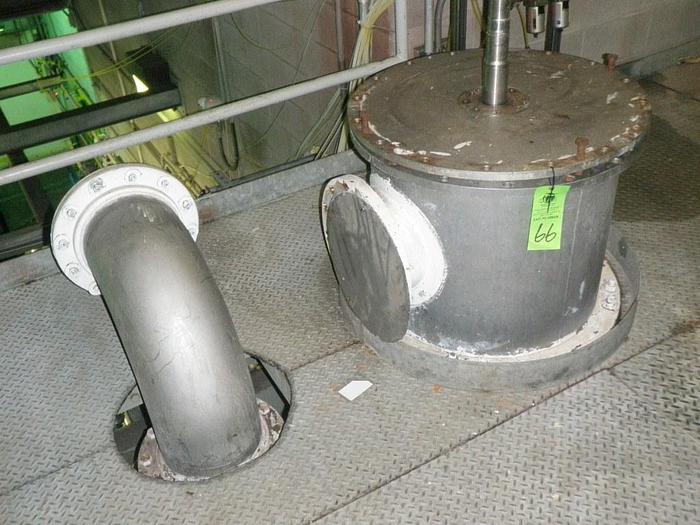

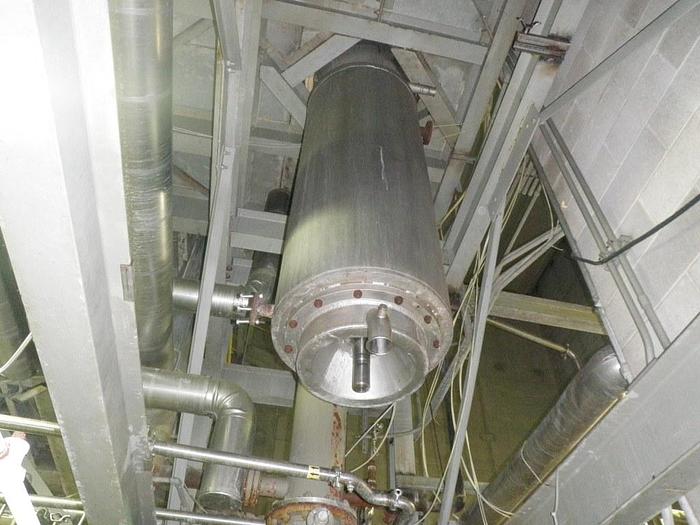

18-072, 316L Stainless Steel. 26 Square feet heat transfer area. (1) 18″ Diameter x 72″ long vertical chamber with a 4 point rotor. Internal rated FV at 40 to 400 degrees F. (1) Carbon steel thermal section rated 150 psi at 40 to 400 degrees F. 2 Tri-clamp feed, 10″ vapor outlet, 2″ tri-clamp bottom outlet. Driven by a 25 hp, 3/60/230/460 volt, 1170 rpm motor. Includes an Industrial Process Equipment 133 square foot vertical shell & tube heat exchanger, model 1ST10-96. 304 Stainless steel tubes, carbon steel shell, both rated 150 psi at 300 degrees F. 44″T, 3100#, HT EX 150″L X 44″W X 30″T, 1200#, BOX 50″L X 42″W X 26″T, 950#. PHOTOS 8/26/11. CERTIFIED BY CHERRY BURRELL, NB# 1209, SERIAL# A5263, BUILT 1991. HEAT EXCHANGER NB# 1050, SERIAL# 109-703, BUILT 1991. NB PAPERS IN AX FILE. ERS#
