ANDRITZ HAMMER MILL

2015 ANDRITZ 4330 SERIES 6 HAMMER MILL

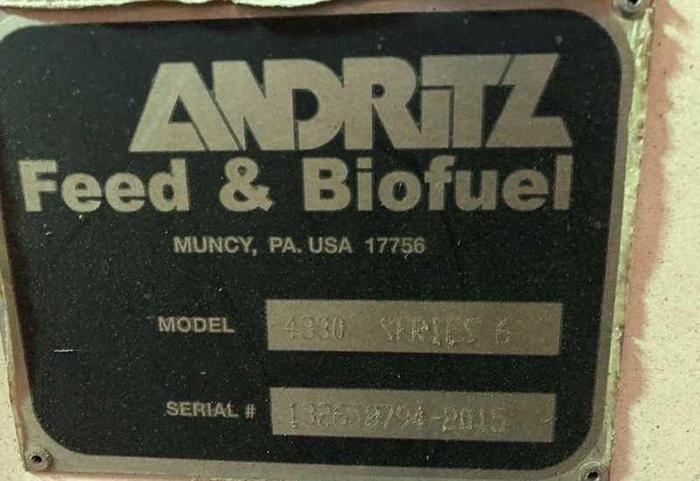

(1) used Andritz Mdl. 43 Series 6 Hammer mill. Specific model 4330.

with rotaary magnet Used for animal feed, biomass, and industrial grinding. Can handle light density materials. Hammer tip speeds up to 120 m/s (23,622 ft/min) Weight excluding motor: 7,170. Recently out of service from pet food manufacturer. High-volume inlet which can handle light-density materials

3-15/16" pillow block bearings "Flow-through" housing design

Bearing temperature sensors integrated, low-profile motor base

rotor length sliding access doors housing will withstand .06 bar internal pressure

mechanical door interlock on hammer mill (no ignition source at mill)

Used for animal feed, biomass, and industrial grinding. can handle light density materials.

hammer tip speeds up to 120 m/s (23,622 ft/min) weight excluding motor
