MEINCKE / DFE OVEN

1 Meter X 150 ‘ L 5 Zone 500,000 btu per zone wire mesh mfg 2006 all stainless steel skin Danish Food equipment / Meincke, impingement convection oven, Order 109066 , 5 zone 500,000 btu per zone ,
40.5 in. wide wire mesh belt , OAD: 156.5 ft. long , 142 ‘ l overall bake bake chamber
oven aperture 49 in. wide x 5 ” high, 74 ” long infeed, 96 ” long discharge, 14 intermediate sections 80 ” long X 72 ” wide x 42 ” high plus 28 ” legs , 5 burner sections are 87 ” long x 84″ wide x 72 ” high plus 28″ legs, control section 158 ” l x 72 w x 74 ” h plus 28 ” legs with plc controls A/B flex 700’s with A/B touch screen panel view plus 1000 , on 28 ” removable stainless steel legs , last used used on pizza shells burners are propane, orifice will need changed for natural gas , oven dismantled on buyers truck, will ship on three 53 ‘ van trailers , one van intermidate sections stacked two high legs off , one van with 5 burner sections, one van two terminal ends, wire mesh belt control panel section 5 skids total , all wires have been matched marked tagged and pulled back into oven control panel, oven is in excellent condition

Read More

Bosch TTF, TTC, TTL Triseal Carton Forming,Robotic Loading and Top Closing

Used- Bosch Triseal Carton Former, Loader and Closer. Line consists of Bosch Model TTF-2 former, Bosch TTL robotic loader, and Bosch TTC closer. Bosch TTF-2 former is capable of 60+ cpm (depending on size). Has a carton/tray size range of: 115mm to 445 mm or 4.5″ to 17.5″ (length) x 75mm – 254mm or 3″ – 10″ (width) x 19mm – 171mm or 3/4″ – 6-3/4″ (height). Includes Bosch TTL Robotic triseal carton top loader with product infeed. And Bosch TTC in-line triseal closer using Nordson Problue hot melt glue system. Also includes product and carton conveyors. Last running running wrapped slugs of crackers/biscuits. Allen Bradley PLC controls with AB HMI stations. Built 2011. 3/60/230V. CE Certified. Also available is Bosch HSE horizontal wrapper with Bosch FGM collator.

Read More

Bosch-Sigpack High-Speed Horizontal Flow Wrapper, Model HCS and FGM

Used- Bosch-Sigpack High-Speed Horizontal Flow Wrapper, Model HCS. Machine is capable of speeds up to 300 packages per minute, depending on product size and film. Has a package size range of 45 to 270 mm in length, up to 335 mm in width, and up to 130 mm in height. Includes Bosch-Sigpack product collator and transfer, Model FGM. Has Allen Bradley Logix 5562 PLC and Allen Bradley Kinetix 6000 servo drivers. Built 2011. Last used on snack biscuits and crackers. 3/50/60/380-480V.

Read More
CP12202_001
CP12202_002
CP12202_003
CP12202_004
CP12202_005
CP12202_006

Vector Coating Drum

“UNUSED VECTOR ENROBING COATING DRUM, 48” x 16′ L 8 INTERNAL LOUVERS WELDED SOLID SO NO PRODUCTS GETS INSIDE LOUVERS INTERNAL SPRAY BARS WITH MANIFOLD SYSTEM, C.I.P. SYSTEM, ALL GUARDS AND DRIVE EXCELLENT CONDITION.

Read More
48624007_bf
48624007_as
48624007_ap
48624007_ag
48624007_af
48624007_ab
14136.4
14136.5
48624007_aa
14136.9

Geo Bowl Mixer

Geo Mixer GEO200 Mixer. S/N: 350/11. yr mfg 2012, 200 liter bowl capacity with 2 bowls dim : 27 ” dia.
x 21 ” deep , stainless steel exterior wash down duty; Stainless steel bowl sheet, bowl ends and canopy; Solid stainless steel construction three motion agitator , one bowl scrape arm agitator and one screw shaft one anchor type agitator; Sanitary removable shaft seals; Heavy duty “unibody” frame design; Stainless steel end doors with safety switches on drive end; Stainless steel bumper bar; Stainless steel sloped cover over drive;- Mixer height and legs to be adjusted in order to feed dough tubs of 910mm height; Manual central lubrication system;capacity 300 Kg/h; Manual ingredients loading to mixer bowls; Power supply: 10Kw, Air consumption: 6bar, 3/60/240, mixer dimensions: Control panel 24” deep x 40” wide x 85” tall, mixer 40” deep x 71” wide x 91” tall (deep measurement is at the base, Unit reduces to 30” about a 16” up from base) $ 65,000.00 loaded fob Il.
Description: Used- FPE Food Processing Equipment Geo Mixer Planetary Mixer, 200 Liter Capacity, Model GEO200, 304 Stainless Steel. Top dust hood with 3 rotating tools, (1) spade cutting tool blade, (1) heavy duty descending spiral tool, (1) round scraper tool. Driven by a 7.5kw motor. 1.5kw Bowl lifting motor, (3) CIP spray nozzles with valves. Includes (2) Approximate 52 gallon 304 stainless steel non-jacketed mixing bowls, 27″ diameter x 21″ straight side, open top, inverted bottom, off center bottom outlet, mounted on casters, a control panel with an Allen-Bradley Powermonitor 1000, CompactLogix L32E, PowerFlex 755 drive and a PanelView Plus 700. Serial# 148/12, built 5/20/2012.

Read More
MX14349_001
MX14349_002
MX14349_003
MX14349_004
MX14349_005

Shaffer Mixer 8SS

SHAFFER SINGLE ARM MIXER 2400 LBS 41.5 CUFT WORKING CAPACITY, HP 37.5/75 , 3/60/575
WITH STARTERS SIZE 4 STARTER FOR MAIN DRIVE SIZE STARTER FOR 1 HYDRAULIC TILIT ,
WITH HDMI TOUCH SCREEN AND PROCESS CABINET
OAD: 90 ” L X 90 ” W WITH MOTOR / 54 ” WIDE WITHOUT MOTOR X 99″ H WITHOUT VALVE ADD 7 ” FOR VALVE , BOWL DIMENSION 66 ” FACE X 54 ” DEEP X 40 ” WIDE SHIPPING WT 18,000
CONTROLS: STATERS PLC CONTROL CABINET TOUCH SCREEN

Read More
MX14375_001
MX14375_002
MX14375_003
MX14375_004
MX14375_005

Shaffer Roller Bar MDL 10

Used-Shaffer Horizontal Bar Mixer, Model 10, 1000 LB Capacity Dough Mixer. Stainless steel frame and Bowl. 75 /37.5 HP Motor, 1785892 rpm. Tilt bowl with separate drive. Bowl measures Approximately: 53" x 45" x 44". Starter Panel, 460V, 3 Ph, 60 Hz, Dual End Drive Belt Drive System, Stainless Steel Jacket on Bowl Sheet and Ends, Stainless Steel Roller Bar Split Hub Agitator and Main Shaft, Stainless Steel Cover, Liquid Inlets, 140 Degree Hydraulic Bowl Tilt with approximately 5 HP motor.

Read More
MX14317_001
MX14317_002
MX14317_003
MX14317_004
MX14317_005

1600 lbs Peerless Roller Mixers

TWO 1600 LBS ROLLER BAR MIXERS , MDL# RF1600HD , 1600 IBS LAST USED ON BREAD DOUGH 75 HP VFD BOWL DIM : 56 face x 48 h x 38 deep MOTORS 3/60/480 WITH CONTROL PANELS STARTERS AND DISCONNECT STAINLESS STEEL ELECTRICAL PANELS NEMA 4 , GEARBOX SPECS: RPM INPUT 1750 RATIO : 6:19 RPM OUTPUT 286 , SPARE PARTS , BAR BUSHINGS , SPARE DRIVE BELT , 1 SPARE REBUILT MAIN DRIVE MOTOR , SPERE SET OF AGITATOR SEALS , STATIONARY BOWLS DOORS RAISE AND LOWER NO DOUGH TROUGHS, MANUALS YES, MIXER IN PROCESS OF NEW BOWL END PLATES , NEW DOOR SEAL KIT , JACKETS HYDRO TESTED GOOD

Read More
DY13974_001
DY13974_002
DY13974_003
DY13974_004
DY13974_005

Spooner Vicars Hybrid Oven

SPOONER / VICARS OVEN 1.2 METER X 300 ‘ L HYBRID OVEN 1 ST SECTION 100’ L DIRECT FIRED 3 ZONES, 2 ND SECTION 160 ‘L IMPINGEMENT 5 ZONES, 3 RD SECTION 40’ L INDIRECT 1 ZONE, TOTAL LENGTH 300 ‘
CB 3 WIRE MESH , IMPINGEMENT SECTION MISSING ZONE 8 BURNER IMPINGEMENT SECTION HAS NEW BURNERS AND GAS TRAIN FLAME OUT MONITORS ON DIRECT FIRED SECTION, DIRECT FIRED SECTION HAS PRE HEAT SECTION APX 14’ L NO BURNERS IN DIRECT FIRED SECTION, APX YEAR OF MFG APX 2000, INDIRECT SECTION 2011 , OVEN STILL INSTALLED , OVEN BUILT ON TUBULAR FRAME, OVEN PROGRAM ON AND ELECTRICAL SCHEMATICS ON FLASH DRIVE OVEN IS IN VERY GOOD CONDITION MATCHED MARKED AND DISMANTLED ON STEEL BEAMS 395 K LOADED

Read More
MX14362_001
MX14362_002
MX14362_003
MX14362_004

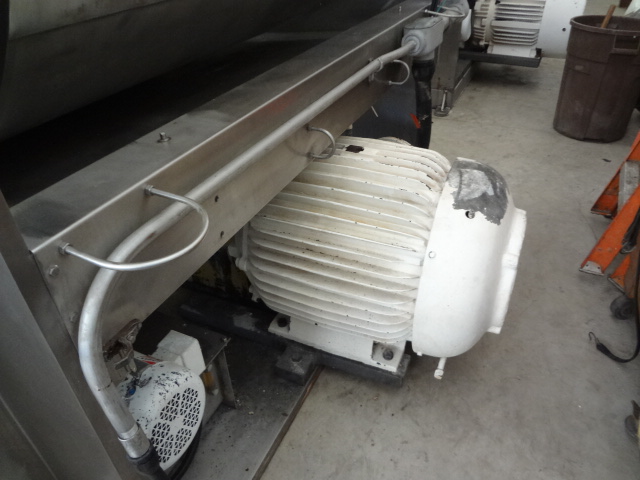

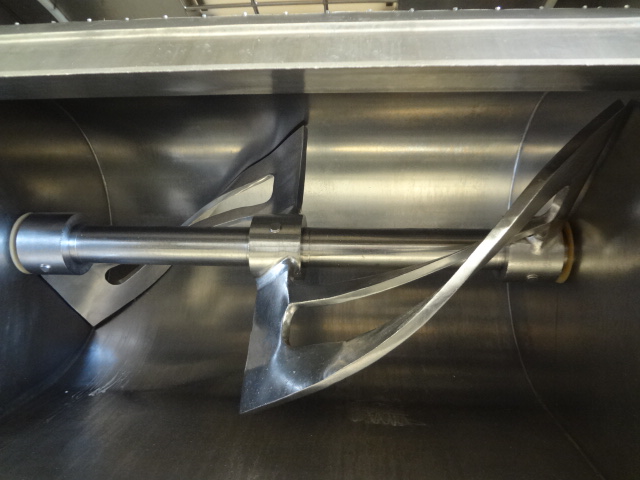

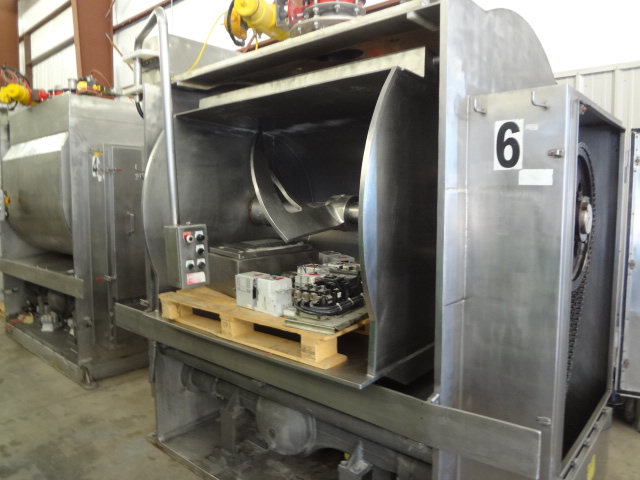

Shaffer 8SS

SHAFFER SINGLE ARM MIXER 2400 LBS 41.5 CUFT WORKING CAPACITY, HP 37.5/75 , 3/60/575
WITH STARTERS SIZE 4 STARTER FOR MAIN DRIVE SIZE STARTER FOR 1 HYDRAULIC TILIT ,
WITH HDMI TOUCH SCREEN AND PROCESS CABINET
OAD: 90 " L X 90 " W WITH MOTOR / 54 " WIDE WITHOUT MOTOR X 99" H WITHOUT VALVE ADD 7 " FOR VALVE , BOWL DIMENSION 66 " FACE X 54 " DEEP X 40 " WIDE SHIPPING WT 18,000

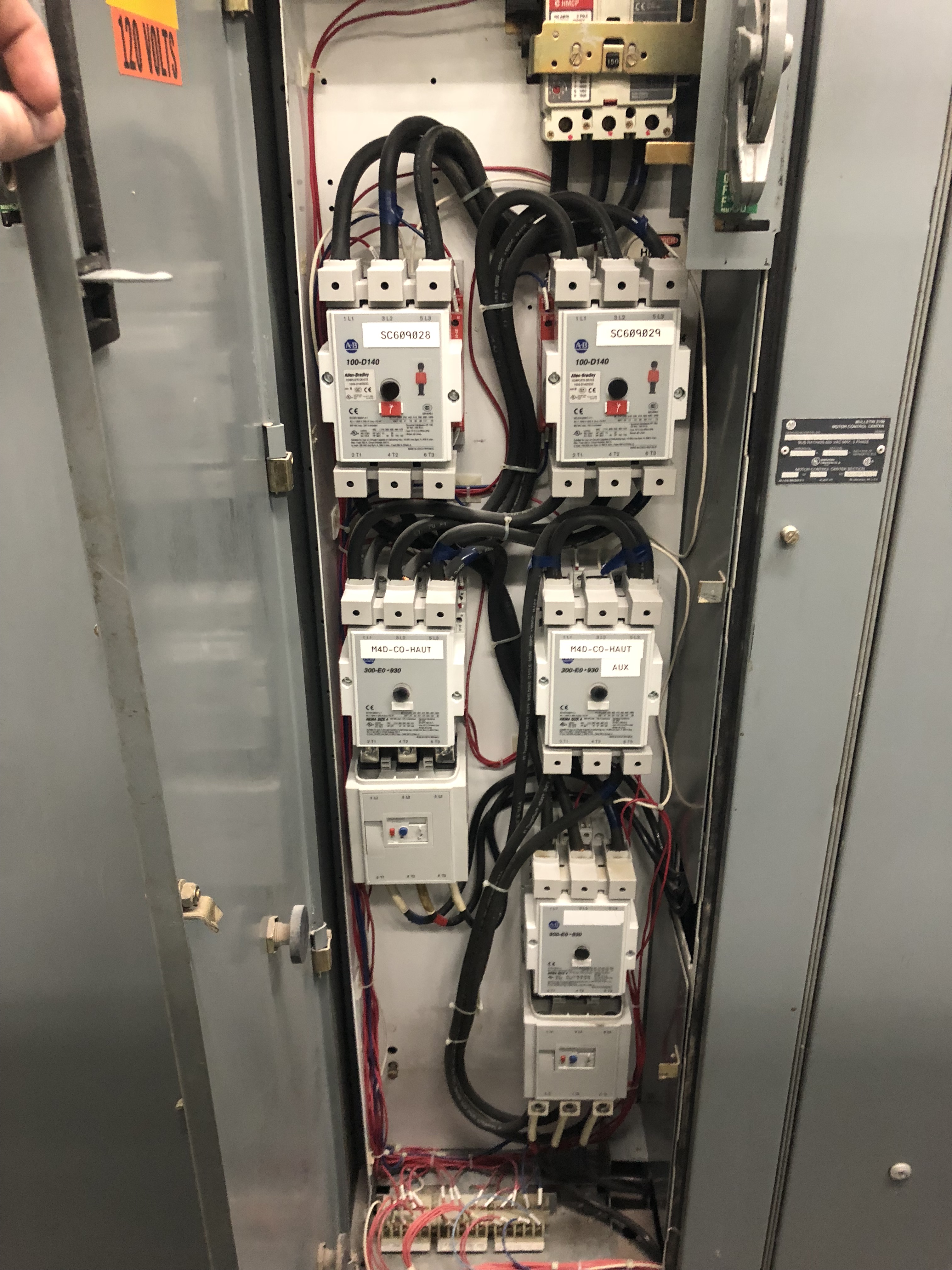

CONTROLS: STATERS PLC CONTROL CABINET TOUCH SCREEN
